Multiple pipe materials available; copper is the default, stainless steel or plastic options are also available.

● Integrated valve and meter with a fully enclosed structure for vandal protection.

● Self-diagnostic functions: flow sensor fault alarm, temperature sensor fault alarm, over-range alarm, low battery alarm, valve fault alarm.

● Utilizes intelligent data error correction technology for high measurement accuracy and stability.

● Employs a combination of lithium battery and SPC to meet the current requirements during valve operation.

● Equipped with a photoelectric interface, supporting on-site reading with handheld infrared meter reading tools.

● Optional wired (M-BUS or 485) or wireless (LoRa) communication interface.

● Optional built-in NB-IoT/4G IoT communication module for IoT meter configuration.

● Supports local IC card pre-payment or (and) remote pre-payment via system platform.

● Compatible with pre-payment management software or remote prepaid management system platform.

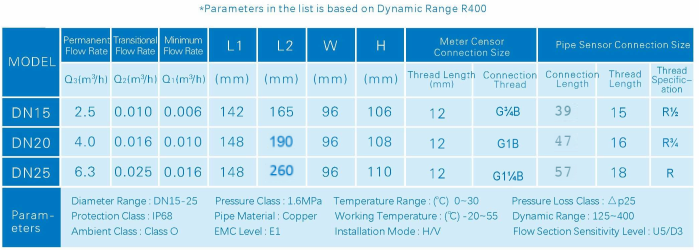

Technique Parameter
