● The meter features a dual-channel design with redundancy, ensuring stable measurement.

● It uses a large-diameter butterfly valve with high torque, reliably closing even under heavy water flow.

● The accompanying DTU can upload meter data and valve status to a remote server.

● Supports remote valve control via a system platform.

● Optional built-in pressure sensor for pipeline pressure monitoring.

● The meter is powered by a built-in battery by default; external power is supported for applications requiring real-time monitoring. Valve control requires an external power supply (12V).

Integrated with a centralized meter reading and prepaid management system platform.

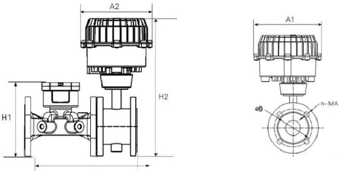

Overall   dimension

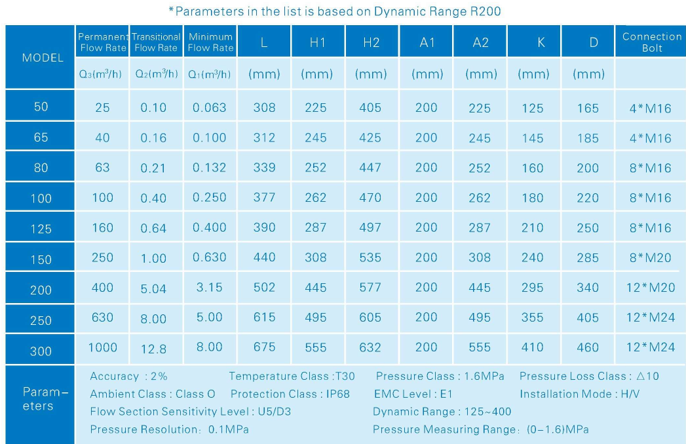

Technique Parmeter

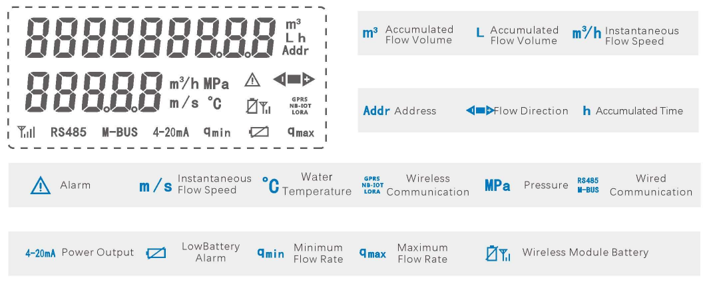

Digital Display

Communication Modes
